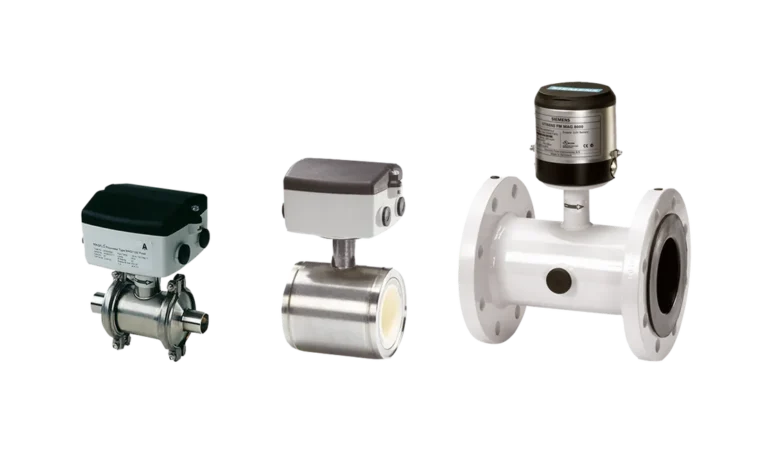

SITRANS FM MAG 1100 F
The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections.
Benefits
- Flexible and unique process connections
- Standard liner options that fully cover the food and beverage applications
- Short delivery time on standard process connections
- Sanitary design for CIP/SIP cleaning
- SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500 / 6000 transmitter for all products (MAG 5100 /3100/ 1100):
• Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
• “Hot swapable” – exchangeable during operation
• Mounting flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
Detail
| Meassuring range | 0 to 10 m/s |
|---|---|
| Nominal size | From DN 10 to DN 100 (3/8″ to 4″) |
| Accuracy | 0.2 % ± 1 mm/s 0.4 % ± 1 mm/s (PFA) |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to 212 °F) |
| Medium temperature | From -30 to 150 °C (-20 to 300 °F) |
| Liners | Ceramics PFA |
| Electrodes | Platinum Hastelloy |
| Material | Stainless steel AISI 316L (1.4404) |
| Approvals | ATEX – 2 GD Zone 1, FM Class 1 div 2 3A |
Application Examples: food industry, beverage industry, pharmaceutical industry
In order to have a complete flowmeter please combine it with one of the following MAG transmitters:
SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
