SITRANS LR100 series

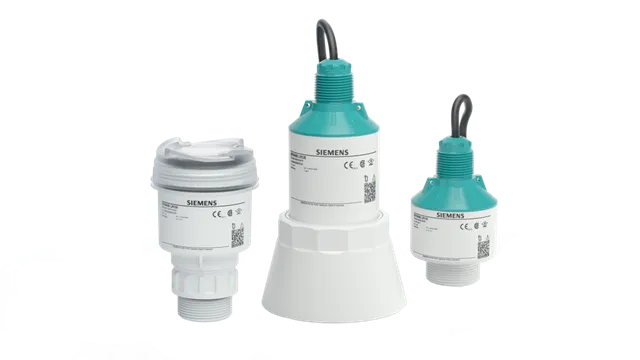

SITRANS LR100 series are 80 GHz compact radar transmitters with Bluetooth wireless technology. For level measurement of liquids or solids. Featuring a narrow beam for flexible installations in existing vessel openings – or non-intrusively through plastic vessels.
The series consists of five transmitters:
SITRANS LR150 – with HART communication, hazardous approvals, local HMI option, and range to 15 m
SITRANS LR100 – basic 4-20 mA measurement to 8 m with cable
SITRANS LR110 – with communications, hazardous approvals options, and range to 15 m
SITRANS LR120 – with communications, longest range to 30 m, and optional submergence shield for flooding protection
SITRANS LR140 – basic measurements to 8 m with terminal connection
Benefits
- Easy Bluetooth® wireless technology for easy and quick setup with Siemens SITRANS mobile IQ App
- 80 GHz narrow beam and small size allows for the easiest installation and commissioning
- Custom radar microchip means signal killer conditions like condensation, buildup or fluffy solids are no match for the extreme sensitivity of the microchip, the weakest signals are still detected
- Zero blanking zone allows measurement range right up to the sensor and with an accuracy of 2 mm you can get rid of costly manual measurement methods
- Digitalization and Industry 4.0 ready with HART 7.0 or optional Modbus RTU for intelligent, value adding data locally or to the cloud
Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.
Don’t forget that the safest engineered level measurement solution includes switches for back-up, overfill, low level and dry run protection. Click here for more information
Detail
| SITRANS LR100 | SITRANS LR110 | SITRANS LR120 | SITRANS LR140 | SITRANS LR150 | |
|---|---|---|---|---|---|
| 7ML530 | 7ML531 | 7ML532 | 7ML533 | 7ML534 | |
| Basic 4-20 mA measurement to 8 m with cable | With communications, hazardous approvals options, and range to 15 m | With communications, longest range to 30 m, and optional submergence shield for flooding protection | Basic measurement to 8 m with terminal connection | With HART communication, hazardous approvals, l ocal HMI option, and range to 15 m | |
| Measuring pinciple | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW |
| Measuring range | 8 m (26 ft) | 15 m (49 ft) | 30 m (98 ft) | 8 m (26 ft) | 15 m (49 ft) |
| Process connections | PVDF Thread 1½” and 1″ | PVDF Thread 1½” and 1″ | PVDF Thread 1″ | PVDF Thread 1½” | PVDF Thread 1½” |
| Process pressure | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar |
| Process temperature | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) | -40 to 80˚C (-40 to 176˚F) | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) |
| Accuracy | 5 mm (0.2″) | 2 mm (0.08″) | 2 mm (0.08″) | 5 mm (0.2″) | 2 mm (0.08″) |
| Beam Angle | 8° | 8° | 4° | 8° | 8° |
| mA/Loop, Communications | 2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA/HART or 4-wire, Modbus | 2-wire, 4 to 20 mA/HART or 4-wire, Modbus | 2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA/HART |
| Ex approvals | no | Gas and dust | Gas and dust | no | Gas |
| Optional HMI | no | no | no | no | Yes, with Quick Start Wizard and diagnostic support |
| Bluetooth | yes | yes | yes | yes | yes |
