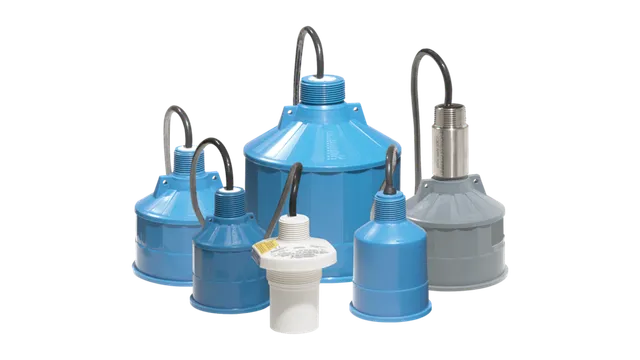

Transducers

Siemens Echomax transducers are easy to install and require little to no maintenance, handling dust, moisture, vibrations, flooding, and high temperatures without fail. And for those dirty applications, ultrasonic transducers’ self-cleaning faces literally shake themselves clean of dirt and buildup, giving you the reliable performance you need.
Narrow beam angle of only 10°

Self-cleaning and low maintenance

Chemically resistant PVDF copolymer enclosure and CSM rubber face are designed for maximum resistance to methane, salt water, caustics and harsh chemcials

Fully submersible: IP68 degree of protection

Easy installation with 1″ NPT or R 1″ BSPT connection

Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.

Don’t forget that the safest engineered level measurement solution includes switches for back-up, overfill, low level and dry run protection. Click here for more information

Range	0.3 to 8 m (1 to 26 ft)
Maximum Temperature	65 °C (149 °F)
Frequency	44 kHz
Key Applications	Wet wells, flumes, weirs, filter beds
