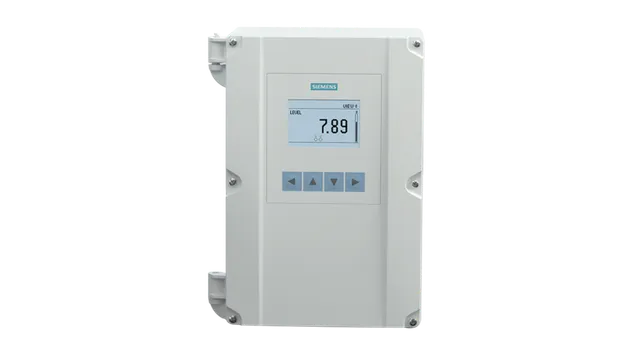

SITRANS LT500 controller
SITRANS LT500 is the next evolution of level, flow, and pump controllers for radar and ultrasonic transmitters, transducers – or any 2-wire 4-20 mA device. It is the first choice for any level controller application and features single and dual point measurements, 6 relays, and EtherNet IP, HART, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFIBUS PA, or PROFINET options
Benefits
- No specialists required – Quick Start Wizards with 6 different display views and optional view information
- Precise measurement with multiple options for liquids or solids using various technologies to meet the application needs – compatible with SITRANS LR110/120, SITRANS Probe LU240, ultrasonic transducers, and generic mA inputs
- Flexible setup and ease of configuration saves time – 6 fully programmable relays rated at 5A for pump control and alarming
- Data recording for easy analysis and potential process optimization – datalogging, parameter backup, and copy configuration on micro memory card
- Immediate status and diagnostic data to your system ensuring improved process quality and intelligent, faster data for operations – digitalization ready with EtherNet IP, HART, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFIBUS PA, or PROFINET options and over 200 diagnostics
Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.
Don’t forget that the safest engineered level measurement solution includes switches for back-up, overfill, low level and dry run protection. Click here for more information
Detail
| Measurement types | Level, distance, space, volume, differential, average, head and Open Channel Flow |
|---|---|
| Measuring range | Sensor based with SITRANS LR110/LR120 and SITRANS Probe LU240, and ultrasonic transducers |
| Communications | Up to three 4 to 20 mA outputs. Fieldbus option cards: EtherNet IP, HART, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFIBUS PA, or PROFINET options |
| Languages | EN, DE, FR, ES, CN, RU, PT, IT, JP, SW, DU, DA, FI, PO |
| Outputs | 2 x 4 … 20 mA + 1 x 4-20 mA output with HART card 6 x relay Fieldbus |
