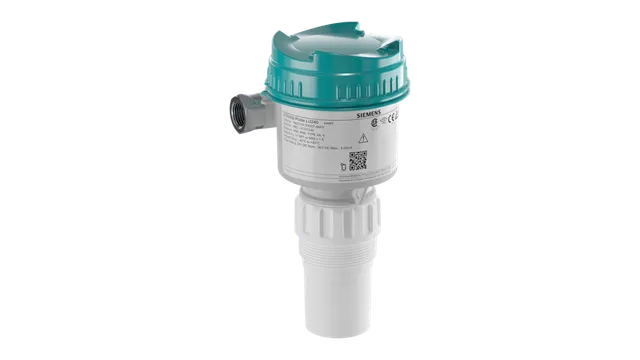

SITRANS Probe LU240
SITRANS Probe LU240 ultrasonic level transmitter is a cost-effective, compact, intelligent level solution for liquid chemical inventory, monitoring small process vessels, and level measurement in the environmental industry. The optional SITRANS AW050 provides Bluetooth® wireless technology for fast and effortless commissioning, diagnostics, and maintenance with SITRANS mobile IQ.
Benefits
- HART 7 communications
- Maintenance-free active face technology keeps the sensor clean
- IP68 fully potted with its fully encapsulated PVDF sensor is resistant to corrosion, chemicals and extreme shock
- State-of-the-art Process Intelligence echo processing
- Battery and solar-powered friendly, with low start-up current and 10.5-volt operation
- Reduced blanking distance
- 4-button user interface or remote configuration
- Optional Bluetooth wireless technology with SITRANS AW050 adapter
Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here.
Don’t forget that the safest engineered level measurement solution includes switches for back-up, overfill, low level and dry run protection. Click here for more information
Detail
| Range | 0.2 to 12 m (8 inch to 40 ft) |
|---|---|
| Process Temperature | -40 to 85 °C (-40 to 185 °F) |
| Output | 4 to 20 mA/HART |
| Wetted Parts | ETFE or PVDF transducers for chemical compatibility |
| Accuracy | 6 and 12 m versions: 0.15 % of range or 6 mm (0.25 inch) ±2 mm (0.08 inch) on ranges 4 m or less3 m version: ±10 mm (0.39 inch) |
| Communications or Outputs | – HART 7- EDD for SIMATIC PDM for remote configuration and diagnostics – FDT such as PACTware or Fieldcare via SITRANS DTM – Optional Bluetooth wireless technology with SITRANS AW050 adapter |
| Key Applications | Water/wastewater chemical storage vessels, small bulk hoppers, filter beds, liquid storage vessels |
