| General information | |

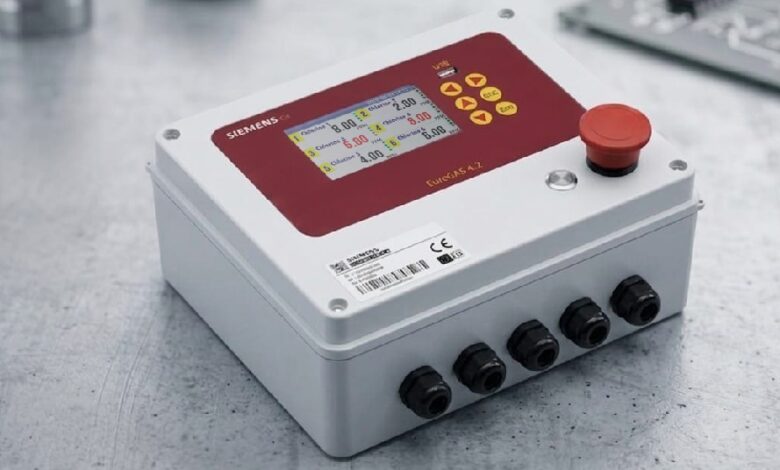

| Product type designation | sCX EuroGAS |
| Firmware version | V4.2 |
| Engineering with | |
| Programming package | Only processed by developer |
| Supply voltage | |
| Rated value (AC) 120 V AC230 V AC | |
| Yes |
| Yes |
| permissible range, lower limit (AC) | 170 V |
| permissible range, upper limit (AC) | 264 V |
| Line frequency | |
| permissible range, lower limitpermissible range, upper limit | 45 Hz |
| 65 Hz |
| Input current | |
| Current consumption (rated value) | 100 mA at 120 V AC; 50 mA at 240 V AC |
| Current consumption, max. | 300 mA at 120 V AC; 150 mA at 240 V AC |
| Inrush current, max. | 20 A; at 264 V |
| I²t | 0.8 A²·s |
| Output current | |
| for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM |
| Sensors | |
| Up to 6 sensors | 1-2-4-6optional |
| ● 0-10v analog sensors ● 0-5v analog sensors ● 4-20ma analog sensors | |
| Power loss | |
| Power loss, typ. | 6 W max |
| Shelf life | |
| 87.6 kh – 43.8 kh guaranteed | |
| ● sensor life | 24 months |
| Outputs | |
| 4 relay output3 Level of alarm | 2 analog outputs |
| |
| Installation | |
| 4 Screws |
| ABS Ip65 |
| Wall mount |
