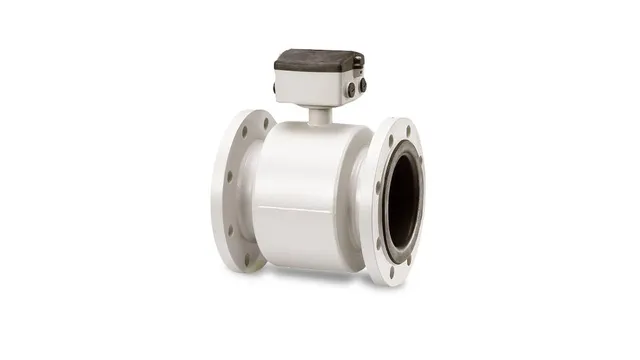

SITRANS FM MAG 3100
SITRANS FM MAG 3100 is an electromagnetic flow sensor with a large variety of liners, electrode material and with grounding electrodes as standard, all this ensures a perfect fit for almost every flow application.
Benefits
- Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
- Universal applications – lining and electrodes available for every application
- High temperature version available up to 356 °F
- Approved for use in potentially explosive atmospheres
- SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 / 3100/1100):
• Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
• “Hot swapable” – exchangeable during operation
• Mounting flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
Details
| Measuring range | 0 to 10 m/s |
|---|---|
| Nominal Sizes | From DN 15 to DN 2000 (½” to 78″) |
| Accuracy | 0.2 % ±1 mm/s |
| Operating Pressure | Max. 100 bar (Max. 1450 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to +212 °F) |
| Medium temperature | From -40 to 180 °C (-40 to 356 °F) |
| Liners | Neoprene EPDM PTFE PFA Ebonite Linatex |
| Electrodes | AISI 316 Ti (1.4571) Hastelloy C Platinum/iridium Titanium Tantalum |
| Material | Carbon steel (or AISI 304) with corrosion resistant two component epoxy coating or AISI 316 L polished flanges and housing |
| General approvals | E.g.: ATEX, FM, CSA, CT and Drinking Water approvals |
Application Examples: process industry, chemical industry, steel industry
In order to have a complete flowmeter, please combine it with one of the following MAG transmitters:
SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
