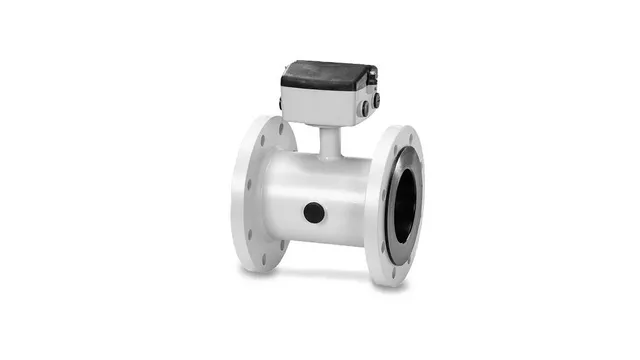

SITRANS FM MAG 5100W
The SITRANS FM MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications.
Benefits
- Zero Up and Zero Down installation capabilities
- Lining specifically for drinking water applications requiring special approvals
- Increased low flow accuracy for water leak detection (NBR or EPDM lining)
- Suitable for underground installation and permanent immersion (IP68) or underwater installation
- Integrated grounding electrodes – no grounding rings required for many applications
- Short delivery time
- SITRANS FM portfolio – our integrated platform enables the flexible use of the transmitter MAG 5000 / 6000 for all products (MAG 5100 / 3100/1100):
• Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
• “Hot swapable” – exchangeable during operation
• Mounting flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
Detail
| Meassuring range | 0 to 10 m/s |
|---|---|
| Nominal sizes | From DN 15 to DN 2000 (1″ to 78″) |
| Accuracy | 0.2 % ±2.5 mm/s |
| Operating pressure | Max. 16 bar (Max. 150 psi) |
| Ambient temperature | From -40 to 70 °C (-40 to 158 °F) |
| Medium tempreature | From -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM NBR hard rubber Ebonite hard rubber |
| Electrodes | Hastelloy C-276 Built-in grounding electrodes |
| Material | Carbon steel, with corrosion resistant two-component epoxy coating |
| Drinking water wpprovals | EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, ACS and BelgAqua NBR: NSF/ANSI Standard 61, WRASEbonite: WRAS |
| Custody transfer approvals | OILM R 49 MI-001 PTB K7.2 (Germany) BEV OE12/C040 (Austria) |
| General approval | MCERTS Sira Certificate No. MC080136/09 |
Application examples: water abstraction, water distribution network, waste water and as custody transfer water meter or cooling meter.
