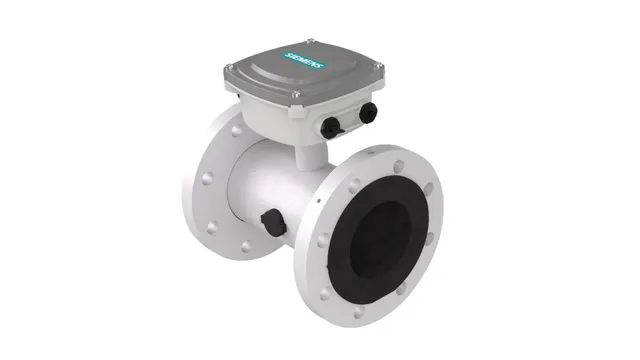

SITRANS FMS500
The SITRANS FMS500 sensor with hard rubber NBR and EPDM liners is designed for any water application.
Benefits
- Zero Up and Zero Down installation capabilities
- EPDM lining specifically for drinking water applications requiring special approvals
- NBR rubber liner for all water and wastewater applications
- Increased low flow accuracy for water leak detection
- Suitable for underground installation and permanent immersion (IP68) or underwater installation
- Integrated grounding electrodes – no grounding rings required for many applications
- Short delivery time
- Connected to the SITRANS FMT020 transmitter, it forms the magnetic flowmeter system SITRANS FM520:
• SENSORPROMTM Technology provides an automatic upload of start-up settings and calibration data for easy commissioning
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just a few minutes
• Mounting flexibility – compact or remote installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed to allow in-situ verification for easy performance check
Detail
| Measuring range | 0 to 10 m/s |
|---|---|
| Nominal sizes | From DN 15 to DN 1200 (1/2″ to 48″) |
| Accuracy | Standard 0.4% of rate, option for 0.2% of rate |
| Operating pressure | Max. 40 bar (Max. 580 psi) (dependent on sensor size) |
| Ambient temperature | –20 to 70 °C (-4 to 158 °F) |
| Medium temperature | -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM NBR |
| Electrodes | Hastelloy C-276 Built-in grounding electrodes |
| Material | Carbon steel, with corrosion resistant two-component epoxy coating |
| Drinking water approvals | EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS and BelgAqua |
Application examples: water abstraction, water distribution network and waste water.
