SITRANS FS230

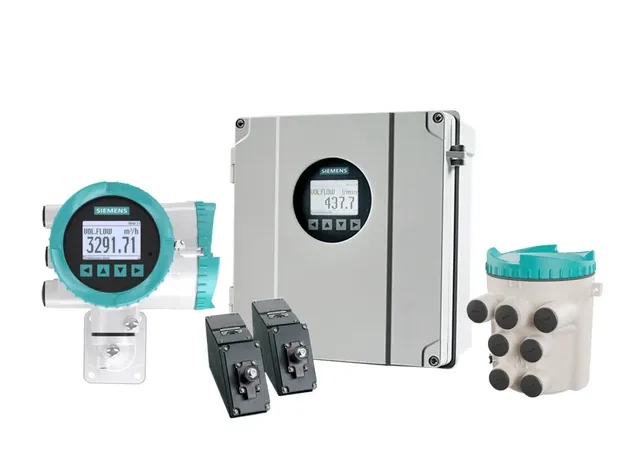

The SITRANS FST030 transmitter with the proven-in-use FSS200 sensors is ideal for challenging applications and the use in Ex areas. The Sitrans FS230 system is compatible with pipe diameters from DN10 up to DN10.000. For applications in hazardous areas, the external electronics module SITRANS FS DSL is used.
For more than 40 years, Siemens has set new standards in clamp-on flow measurement. They key to optimal signal transmission is a harmonious interplay of the ultrasonic sensors and the pipe wall. Lambwave sensors transmit the signal waves in the resonance range of the pipe, our WideBeam® technology achieves an even more accurate adjustment to the application and pipe characteristics. Especially in difficult conditions, such an exact adjustment to flow characteristics is key for highly precise measurements.
SITRANS FS230 with Ex approval is built to meet the toughest demands of the hydrocarbon industry.
Benefits
- Ideal for measuring tasks that require maximum precision
- Clamp-on flow system for the measurement of liquids, oil or gas
- Suitable for new installations as well as retrofitting
- Designed for use with up to 4 paths
- Designed for use in Ex areas, safe distance to transmitter of up to 150 m
- Fast signal processing with 100 Hz update rate
- High accuracy, repeatability and zero flow detection
- Downward compatible with all sensors of the SITRANS FUS1011 family
- Replacement device for SITRANS FUS1010, FUH1010 or FUG1010
- Designed according to NAMUR requirements and Industry 4.0 with various diagnostic functions
Technical specifications
| Enclosure | Wallmount enclosure: die-cast aluminum, painted, wall or standpipe mounting options, IP65/NEMA 4X for Ex zone 2 or Class 1 Div 2Industrial enclosure: die-cast aluminum, painted, wall or standpipe mounting options, IP65/NEMA 4X for Ex zone 1/2 or Class 1 Div 1/2Digital Sensor Link (DSL) – external variant up to 4-path: die-cast aluminum, painted, IP68, for use in Zone 0/1 or Class 1 Div 1/2 |
|---|---|
| Sensors | FSS200 Sensors (Clamp-On) In the universal or high precision version (up to max. 120 ° C / 250 ° F) or high temperature (up to 230°C/446°F), for use in Zone 0/1 or Class 1 Div 1/2 |
| Process values (primary) | Volume flowMass flowStandard volume flowFlow velocitySpeed of soundLiquident detectionTotalizer 1, 2 and 3 |
| Communication | HART or Modbus RTU; compatible with SIMATIC PDM; USB service port |
| Data logger | 4GB SD card, expandable to 32 GBData logging in table format (.csv) for: measurement data, alarms, incidents, firmware updatesLogging interval programmable from 1s – 24 hours |
| I/O options | 3 in/outputs: channel 2, 3 and 4: 4-20 mA active/passive, status output, relay Inputs channel 5 and 6 on external SITRANS FS DSL: 2 x temperature PT100/500/1000 or 2 x analogue (temperature and pressure) |
| Display | Full-graphic display, 240 x 160 pixel, backlit |
| Power supply | 24 V DC / 90 – 240 VAC |
| Approvals | UL, cUL, CE, ATEX, FM, and more |
| Measuring accuracy | ≥ 0,3% |
| Flow range | Liquids ±12 m/s (±40 ft/s), gas, ±40 m/s and more; bidirectional |
| Pipe diameters | 12,7 mm to 10 m (0.5″ to 394″) |
Typical applications: drinking water supply, water networks, cooling water in power plants, chemical liquids (Ex areas possible), crude oil providers and pipeline operators (product and margin detection, leakage detection, pig runs), gas transport and gas providers in high pressure grids.
